CALDIA
|
|
CALDIA

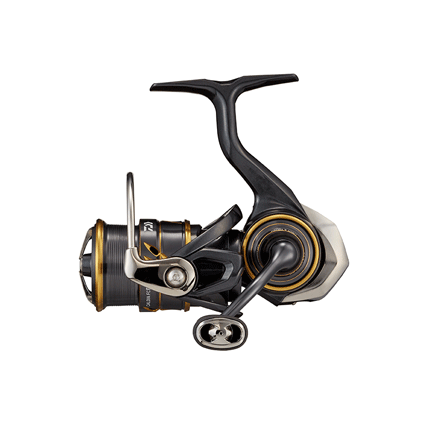

FC LT1000S |
|
THE MONOCOQUE STANDARD
New material ZAION V adopted
By adopting a monocoque body It is possible
to enclose a huge drive gear, Rigidity,
power and rotational durability The birth
of the next-generation CALDIA, which has
been greatly improved. Lightweight and
highly durable material for body and
rotor Adopting new material ZAION V
(carbon-containing resin),
Both lightweight and power. |

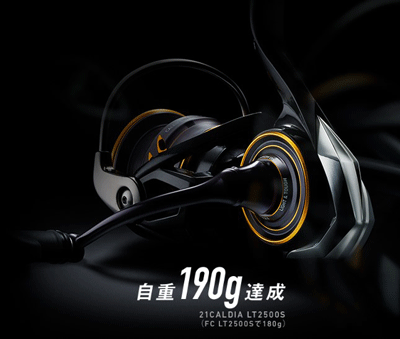

ZAION V
MONOCOQUE BODY
 Following magnesium, aluminum and ZAION
The ZAION V monocoque body,
which is the fourth material.
In a lightweight compact housing Encloses
the largest diameter tough digital gear
(about 7% larger diameter). |
ZAION V
AIR ROTOR
 Equipped with an ultra-lightweight ZAION V air rotor.
Achieves light rotation of unwinding and high rigidity |
LIGHT & TOUGH

Commitment to thorough weight reduction in details such
as body, spool, and handle. LT is the new standard for
Daiwa compact spinning, which was created by evolving
the gear that is the heart of the reel and the material
of the body that surrounds it to a tougher one.
|
MAGSEALED

It is a wall of mug oil that can exist semi-permanently due
to magnetism, and is DAIWA's only one technology that
prevents seawater and dust from entering the inside of the reel.
In 21CALDIA, the body part boasts a seamless monocoque
body structure and stopperless design, which makes
it highly waterproof, so it is installed in the pinion gear part.
|
TOUGH DIGIGEAR

Elements (design concept, processing technology, gear material)
are indispensable. 21CALDIA is a further evolution of DigiGear II,
and adopts "Tough DigiGear" that keeps smooth rotation
for a longer time. Achieves the ideal gear finished with high strength.
Achieves infinite noiseless rotation
|
ATD
 Denies fish the initiative by following along with fishes’ pull.
The weak drag applied for the range at which it follows along
is the true value of the technology.
|
LC-ABS (Longcast-ABS)
 The flight distance has been increased by about 5%
and trouble-free has been improved over the conventional ABS II.
It is a next-generation ABS spool that truly realizes LC(= LONG CAST). |
Perfect Line Stopper
 A new shape line stopper that supports both fine threads such
as PE and thick threads such as leaders. The horizontally
long setting structure saves space in the vertical direction
and contributes to weight reduction of the spool. |
Stopperless body
 The body structure is simply finished by removing the stopper.
By deciding to remove the stopper, which is the entry route
for water and foreign matter, the weight is reduced and
the waterproof performance is improved. |
|
|
| Lineup |
FC LT1000S
|
FC LT2000S
|
FC LT2000S-H
|
FC LT2500S
|
Light game compatible
modelssuch as trout,
aging, rockfish games
The lightness of 170g
is a big advantage in
delicatefishing using
a light lure. |
One of the most versatile
units in the light game
category, whether
freshwater or seawater. |
Native trout in mountain
basins,taking advantage
of the speed of winding
The lightness of 175g
is a big advantage in
delicate fishing using
a light lure. |
Achieves an amazing
lightness of 180g in
the 2500 class. Ideal
for bass fishing with
light rigs. One that can
be used for versatile
even in the light
salt water category. |
|
|
|
|
LT2500
|
LT2500S
|
LT2500S-XH
|
LT3000-CXH
|
The most versatile model
that can cover a wide
range from salt to
freshwater.
The 2500 body that can
be used tougher assists
powerful hoisting. |
The most versatile model
that can cover a wide
range from salt to
freshwater.
The 2500 body that can
be used tougher assists
powerful hoisting. |
The most versatile model
that can cover a wide
range from salt to
freshwater.
The 2500 body that can
be used tougher assists
powerful hoisting. |
A utility model that can
be used for various types
of fishing, such as sea bass
in the bay area, char,
yamame trout, and amago
in the medium-sized
mainstream, as well
as egging. |
|
|
|
|
LT3000
|
LT3000-XH
|
LT4000S-C
|
LT4000-CXH
|
Versatile model that can
cover a wide range from
salt area to fresh water.
With a tougher 3000 body,
it is fully compatible with
the trendy SLJ (Super
Light Jigging). |
Versatile model that can
cover a wide range from
salt area to fresh water.
With a tougher 3000 body,
it is fully compatible with
the trendy SLJ (Super
Light Jigging). |
4000 standard model
that realized powerful
and light rotation
performance with
low gear x long handle. |
A classic model of
sea bass and
light shore jigging.
It enables speedy
fishing development
that takes advantage
of the speed of winding. |
|
|
|
|
|
| Specification table |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity
Nylon Line (lb-m)
PE Line(PE-m) |
Bearing |
Price
[JPY] |
Product
Code |
Parts
Scheme |
| BB |
roller |
| FCLT1000S |
5.1 |
64 |
170 |
5.0 |
2lb-120m
2.5lb-100m
3lb-70m
PE 0.2-210m
PE 0.3-200m
PE 0.4-130m |
6/1 |
JPY 17,978 |
00060281 |
 |
| FCLT2000S |
5.1 |
67 |
175 |
5.0 |
2.5lb-200m
3lb-150m
4lb-100m
PE 0.4-200m
PE 0.5-170m
PE 0.6-150m |
6/1 |
JPY 17,978 |
00060282 |
|
| FCLT2000S-H |
5.8 |
76 |
175 |
5.0 |
2.5lb-200m
3lb-150m
4lb-100m
PE 0.4-200m
PE 0.5-170m
PE 0.6-150m |
6/1 |
JPY 17,978 |
00060283 |
|
| FCLT2500S |
5.1 |
72 |
180 |
5.0 |
4lb-150m
5lb-120m
6lb-100m
PE 0.6-200m
PE 0.8-190m
PE 1.0-140m |
6/1 |
JPY 18,374 |
00060284 |
|
| LT2500 |
5.2 |
73 |
195 |
10.0 |
4lb-230m
6lb-150m
8lb-100m
PE 0.6-290m
PE 0.8-200m
PE 1.0-190m |
6/1 |
JPY 18,374 |
00060285 |
|
| LT2500S |
5.2 |
73 |
190 |
5.0 |
4lb-150m
5lb-120m
6lb-100m
PE 0.6-200m
PE 0.8-190m
PE 1.0-140m |
6/1 |
JPY 18,374 |
00060286 |
|
| LT2500S-XH |
6.2 |
87 |
190 |
5.0 |
4lb-150m
5lb-120m
6lb-100m
PE 0.6-200m
PE 0.8-190m
PE 1.0-140m |
6/1 |
JPY 18,374 |
00060287 |
|
| LT3000-CXH |
6.2 |
93 |
205 |
10.0 |
8lb-150m
10lb-120m
12lb-100m
PE 1.0-200m
PE 1.2-190m
PE 1.5-170m |
6/1 |
JPY 18,770 |
00060288 |
|
| LT3000 |
5.2 |
77 |
215 |
10.0 |
8lb-150m
10lb-120m
12lb-100m
PE 1.0-200m
PE 1.2-190m
PE 1.5-170m |
6/1 |
JPY 19,166 |
00060289 |
|
| LT3000-XH |
6.2 |
93 |
215 |
10.0 |
8lb-150m
10lb-120m
12lb-100m
PE 1.0-200m
PE 1.2-190m
PE 1.5-170m |
6/1 |
JPY 19,166 |
00060292 |
|
| LT4000S-C |
5.2 |
82 |
230 |
12.0 |
8lb-150m
10lb-120m
12lb-100m
PE 1.0-200m
PE 1.2-190m
PE 1.5-170m |
6/1 |
JPY 19,562 |
00060290 |
|
| LT4000-CXH |
6.2 |
99 |
230 |
12.0 |
10lb-190m
12lb-150m
14lb-130m
PE 1.2-310m
PE 1.5-200m
PE 2.0-170m |
6/1 |
JPY 19,562 |
00060291 |
|
|
|
|
